HAPTICORE Four

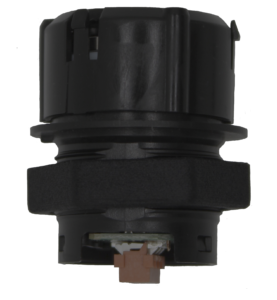

Introducing HAPTICORE Four – our medium-sized dial designed to offer enhanced performance in a compact and efficient form. Engineered to achieve the ultimate performance-to-size ratio, HAPTICORE Four provides precise, reliable controls in a variety of demanding applications. Whether it’s integrating into household appliances for seamless user interaction, enhancing the precision of professional appliances, providing robust control in off-highway vehicles, or optimizing industrial machinery, HAPTICORE Four stands out for its versatility and dependability.

Request a Quote

Receive a custom quote for the HAPTICORE Four rotary haptic actuator

Primary Application Areas

Household Appliances

Professional Appliances

Off-Highway Vehicles

Industrial Machinery

Improved Haptic Performance

Thanks to the next-gen HAPTICORE technology, our new product portfolio delivers substantial improvements in haptic performance compared to previous generations. With this latest innovation, you will experience stronger and more precise haptic feedback than ever before.

This ensures smoother transitions and greater precision for your custom haptic modes, allowing for seamless and satisfying user interactions.

Impressive Size-to-Haptic-Performance Ratio

HAPTICORE Four is designed to offer the perfect balance between size and performance. Its medium-sized dial provides enhanced haptic feedback while maintaining a compact and efficient form. This makes it incredibly versatile for a variety of applications.

TRY OUR ROTARY HAPTIC ACTUATORS NOW!

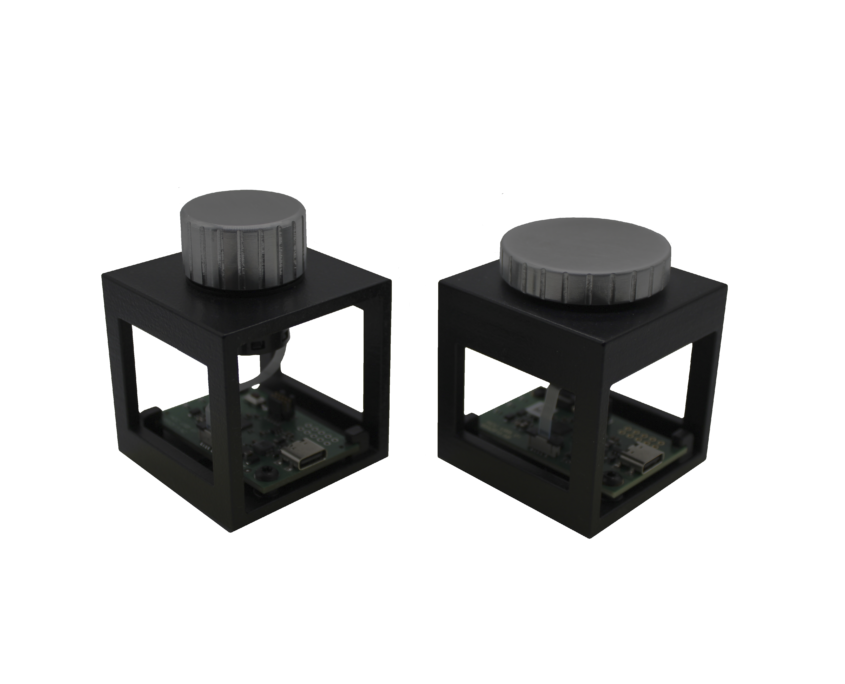

HAPTICORE Four Eval Kit

Experience the immersive haptic feedback of our actuators firsthand with the HAPTICORE Eval Kits.

Integrate our haptic actuators into your prototype projects, replace conventional control elements, and go beyond the limitations of traditional UI design.

€ 900,- per piece

excl. VAT and delivery cost

Request Eval Kit

Technical Data

Electronics
Diameter	25 mm
Height	33 mm
Weight	36 g
Sensor type	Hall effect sensor
Sensor resolution	0.1°
Sensor placement	Integrated in the shaft

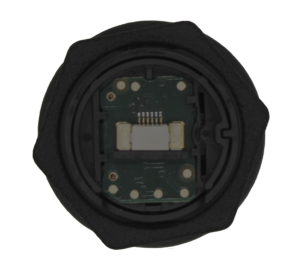

Electrical interface – connector	TE MICRO-MATCH 6POS 188275-6 or FPC 6POS 0.5mm Pitch ZIF horizontally
Electrical interface – sensor	I²C (400 kHz)
Rated insulation voltage – coil	15 V
Supply voltage – sensor	3.3 V (+2.8 V to 3.6 V)
Minimum coil driver supply voltage	5.4 V to drive max. coil current
Max. coil supply current	450 mA
ESD protection	IEC61000−4−2 Level 4 Contact Discharge ±8kV Air Discharge ±15kV
Mechanics
Mounting point	Single mounting point
Mounting diameter @ customer interface	• CORE04-A = Screw-on version: ø 22.3 incl. nose (standard installation hole) • CORE04-B = Snap-in version: ø 22.4 incl. defined contours for snapping in
Push function	Yes
Push actuating force	~ 3.5 N or ~ 7 N
Push travel	~ 0.7 mm
Cover mounting mechanism	Plugged in
Recommended cover diameter	29 to 40 mm
Performance data
Lifetime rotations	Up to 1.000.000
Lifetime push actuation	Up to 2.000.000
Operating temperature range	-25 °C to + 85 °C
Storage & Transport temperature range	-40 °C to + 85 °C
Max. barrier torque	≥ 0.20 Nm @ 450 mA coil current
Mean base torque	≤ 10 mNm
Compliance
ROHS/REACH	Yes

Resources

3D Model

.stp File – HAPTICORE Four

Datasheet

Datasheet – HAPTICORE Four
